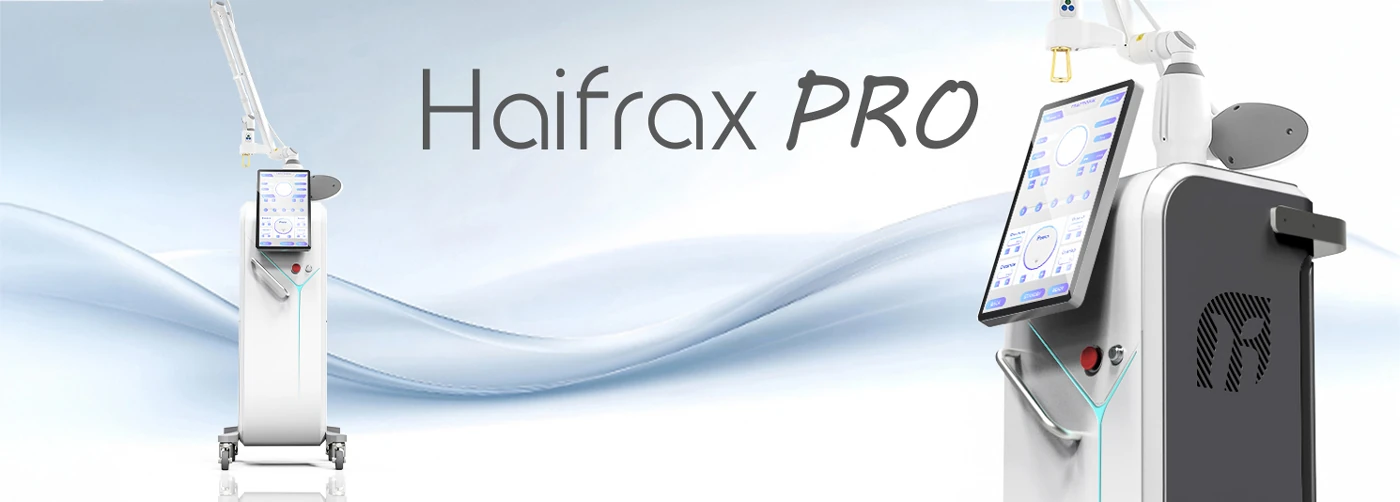

Haifrax PRO

70w/100w CO2 FRACTIONAL LASER MACHINE

3 in 1 Fractional CO2 / Cutting Surgical / Gynecological Mode

Back to Catalog

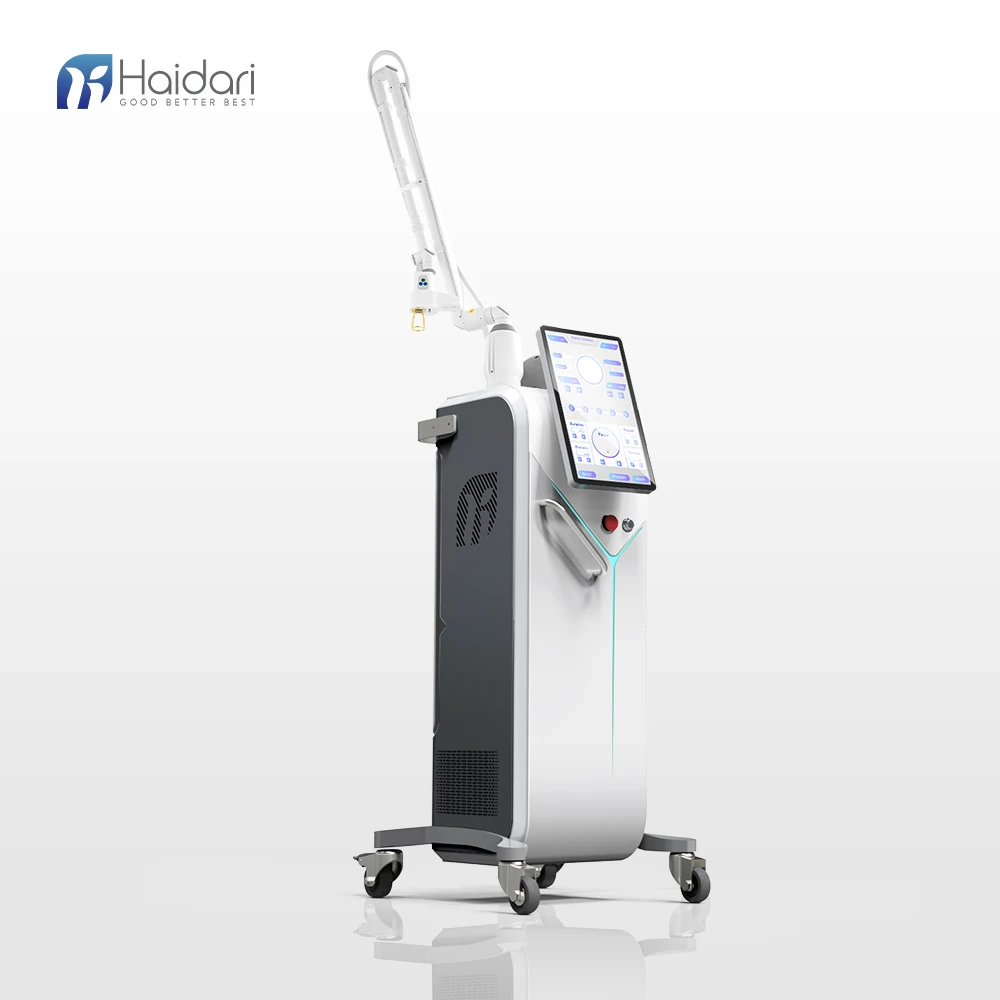

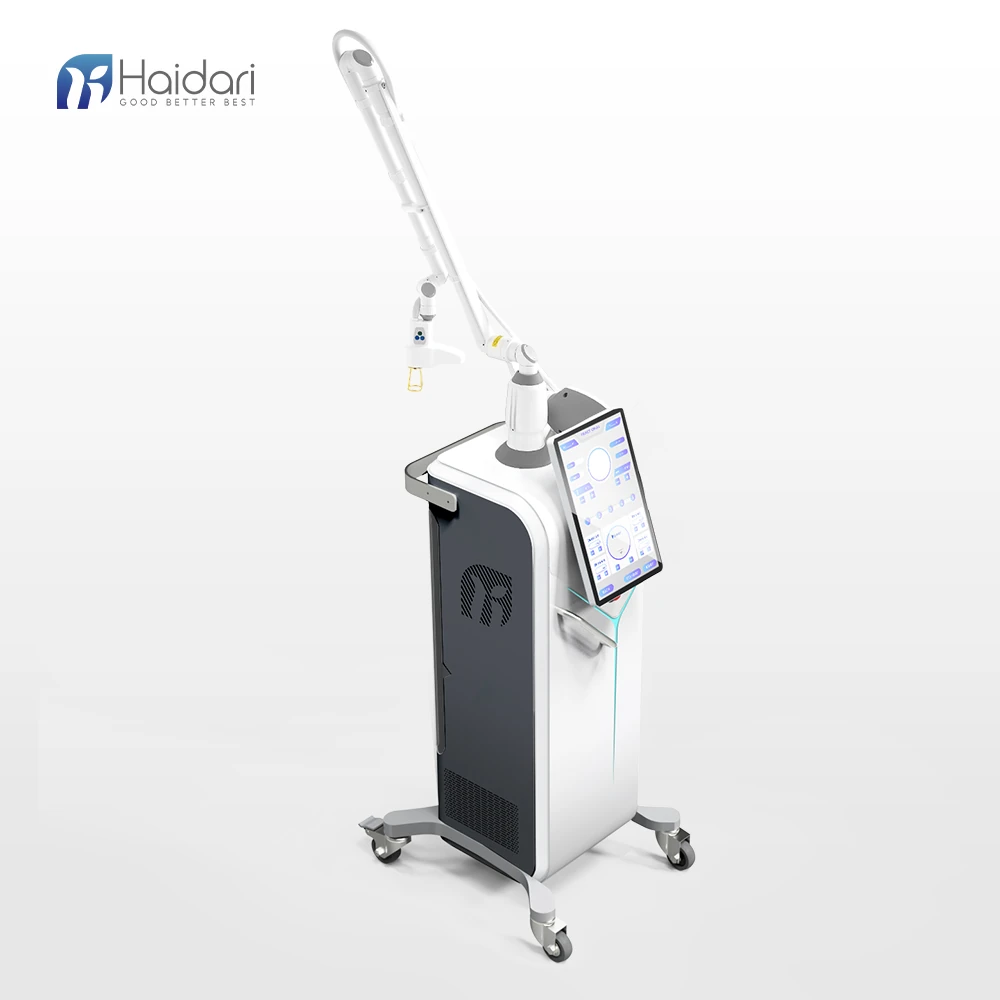

70w/100w CO2 FRACTIONAL LASER MACHINE

3 in 1 Fractional CO2 / Cutting Surgical / Gynecological Mode

Wavelengths: 10600nm
Laser Type: UltraPulse, SuperPulse and CW
Pulse Duration: 0.05-10 ms
Treatment Area: up to 20×20mm
Cooling: Air cooling

Overview Application Working Principle Clinical Support

Premium Imported Optical System

Equipped with a U.S.-manufactured Coherent laser tube and German optical components to ensure superior beam stability, clinical precision, and long-term reliability.

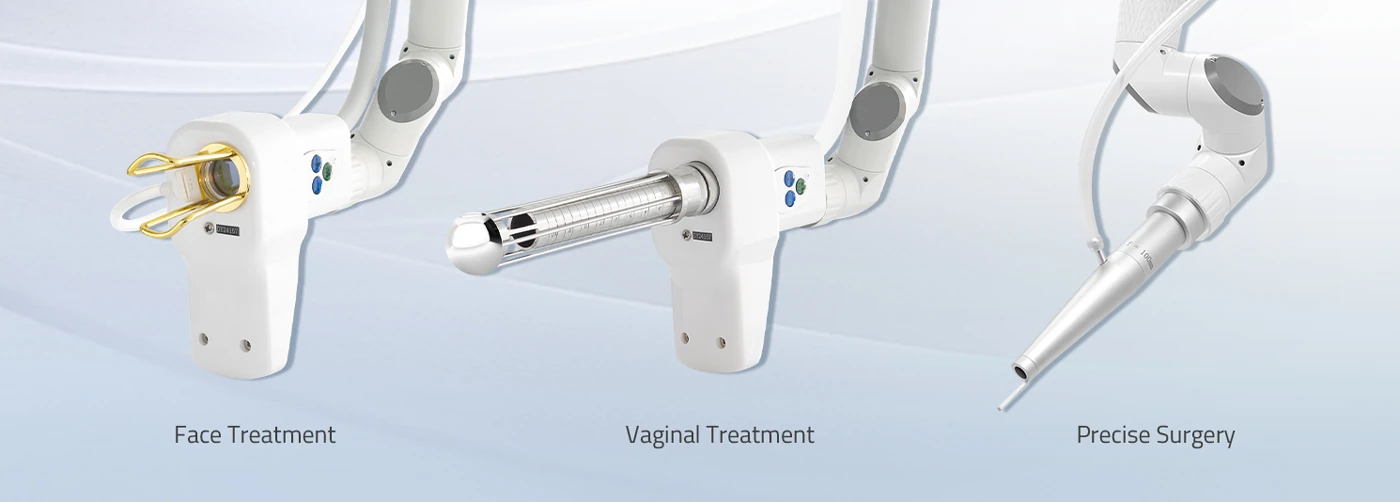

Three Mode Integrated Treatment Platform

Combines Fractional, Surgical Cutting, and Gynecological modes in one device, covering cosmetic resurfacing, surgical excision, and intimate rejuvenation.

UltraPulse & Continuous Wave Outputs

Supports both UltraPulse (≤1 ms) and Continuous Wave (CW) emission for precise ablation, efficient cutting, and controlled thermal coagulation.

5 Year Core Parts Warranty

Backed by a 5 year warranty on the laser tube and optical system, ensuring long term performance and lower cost of ownership.

$70w/100w co2 fractional laser machine$

Overview

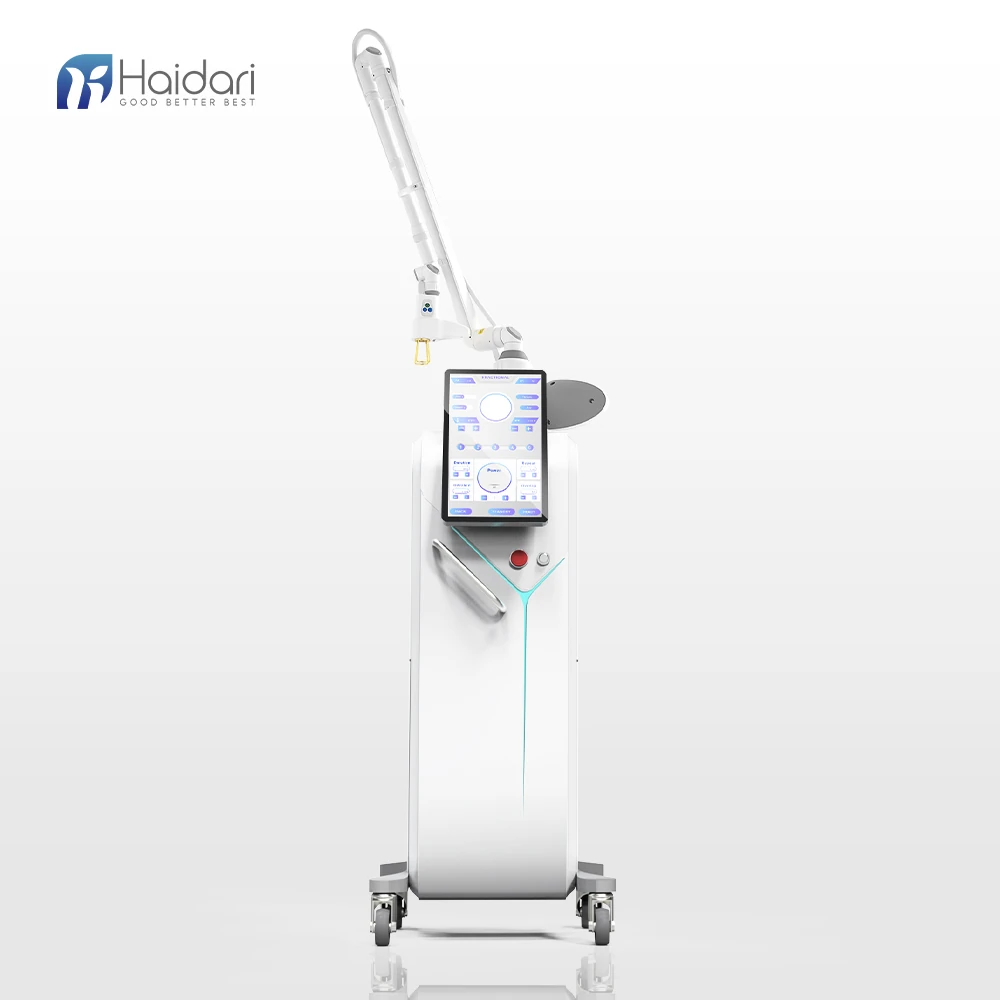

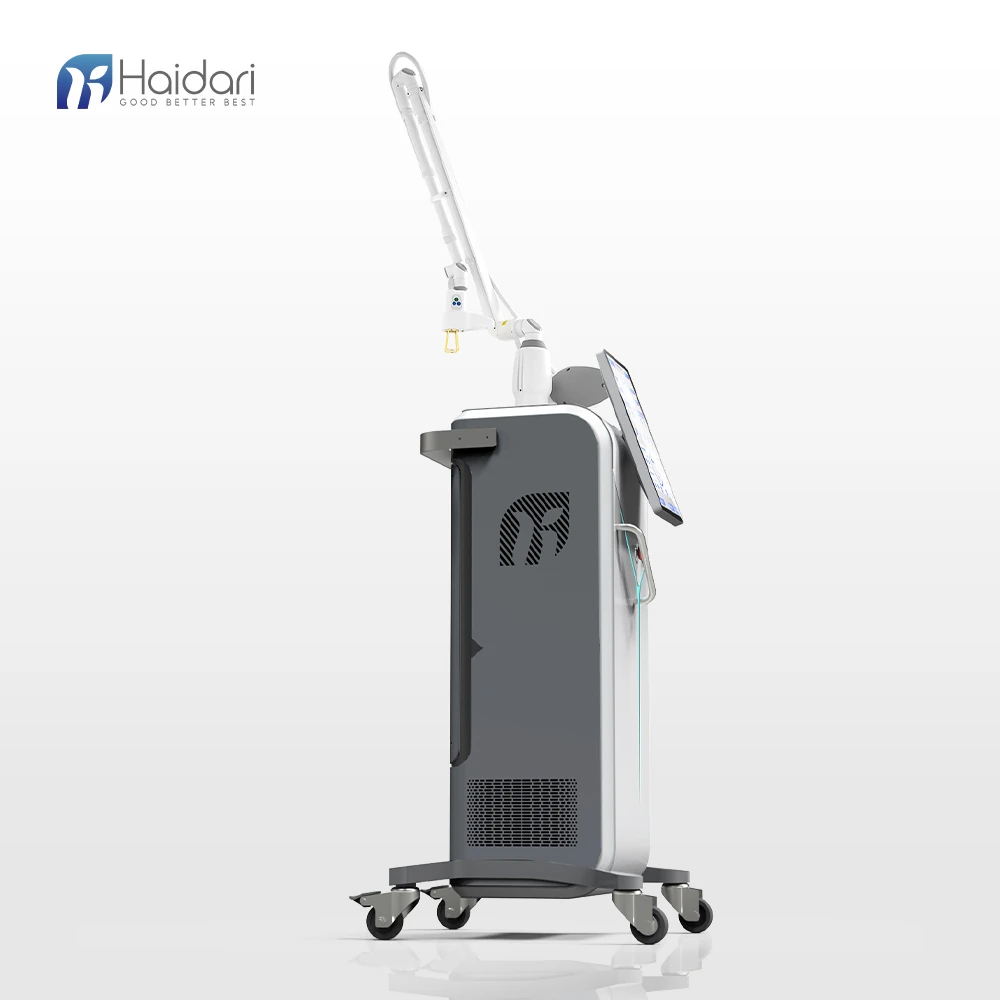

The Haidari 70W/100W CO2 Fractional Laser is engineered with a U.S. Coherent laser tube and German optical system to deliver precise and stable clinical performance.

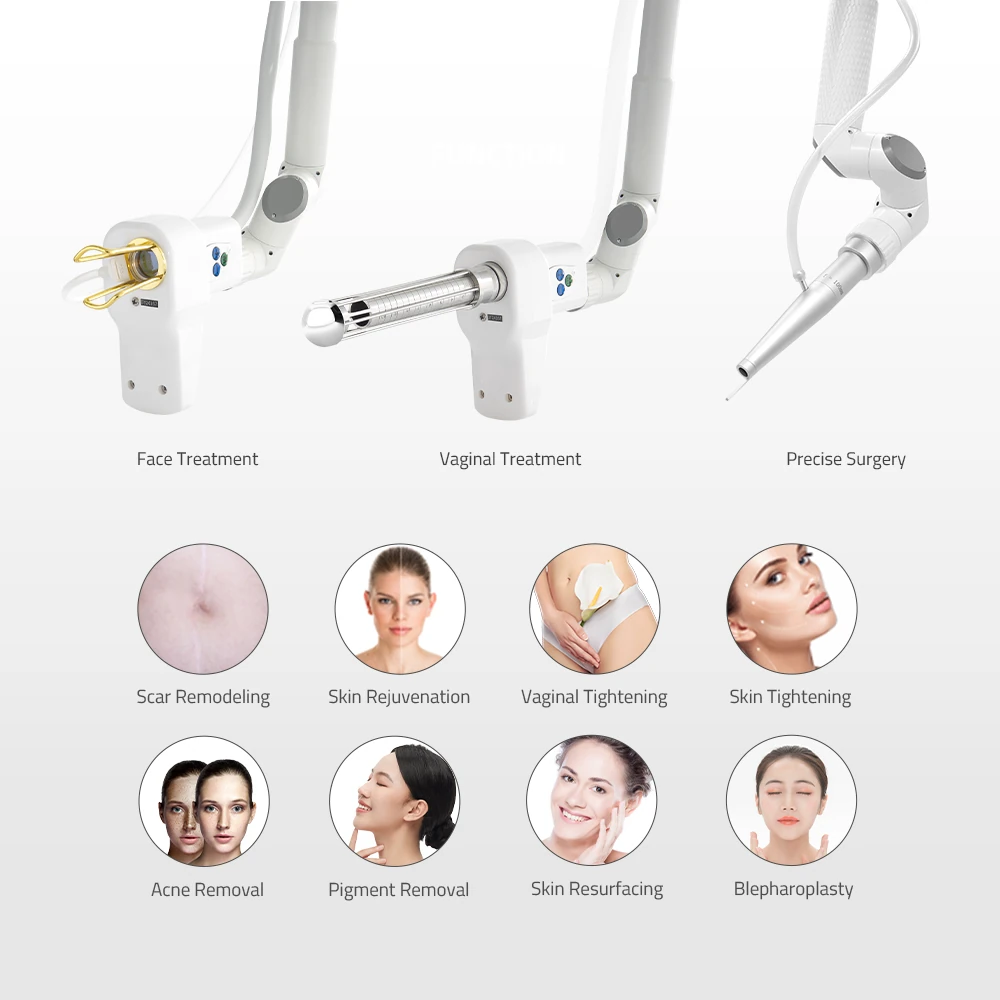

It offers three treatment modes—Fractional, Cutting, and Gynecological—along with customizable patterns including Snail Mode, supporting diverse procedures from skin resurfacing to surgical applications.

$70w/100w co2 fractional laser machine$

Applications

Ablative Skin Resurfacing & Rejuvenation

Treats fine lines and wrinkles, remodels acne scars, addresses photoaging, and removes epidermal lesions through controlled tissue ablation.

Minimally Invasive Scar Revision

Reduces hypertrophic and surgical scars, softens burn scar contractures, and remodels stretch marks and striae gravidarum via fractional ablation.

Surgical & Lesion Management

Performs precise excision and vaporization of warts, moles, and benign skin lesions with targeted tissue removal.

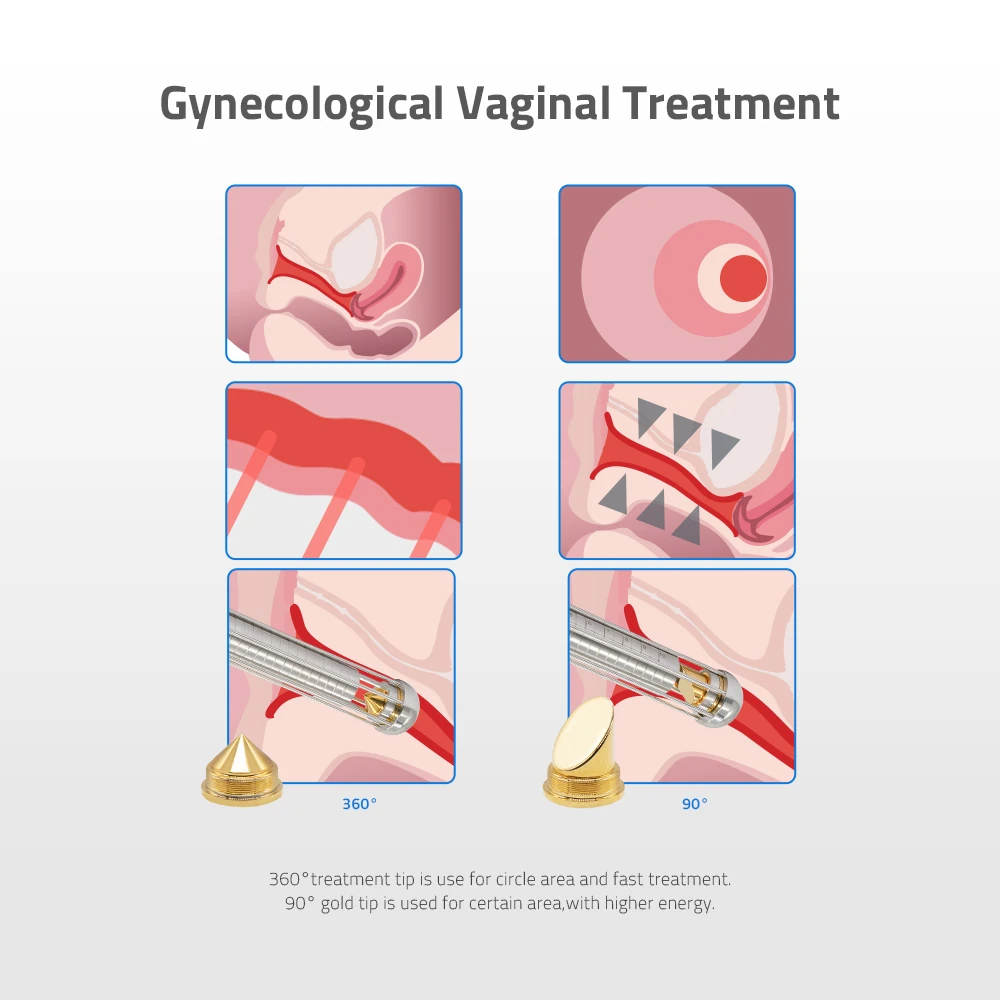

Gynecological Rejuvenation

Addresses vulvovaginal atrophy and dryness, improves vaginal laxity, and provides cosmetic labial contouring through fractional CO₂ ablation.

Skin Texture Optimization

Reduces enlarged pores, smoothes rough skin texture, and delivers non-incisional tightening effects via controlled thermal remodeling.

$70w/100w co2 fractional laser machine$

Working Principle

The CO2 laser emits infrared light at 10,600 nm, which is strongly absorbed by intracellular and extracellular water in biological tissues. This absorption results in rapid volumetric heating and vaporization of tissue, enabling precise ablation with limited thermal diffusion to surrounding structures.

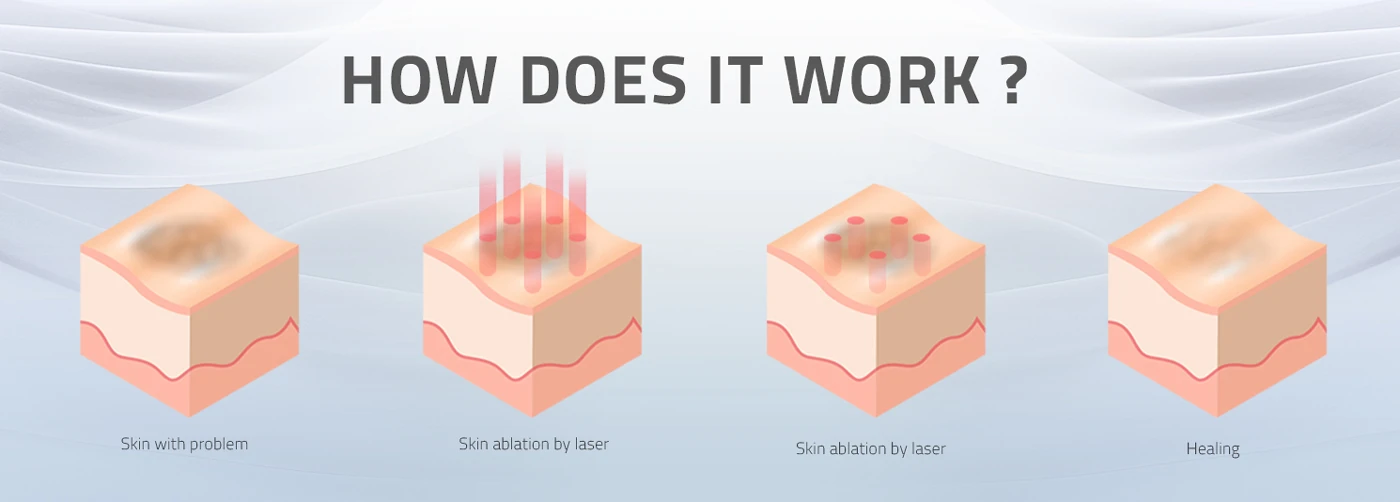

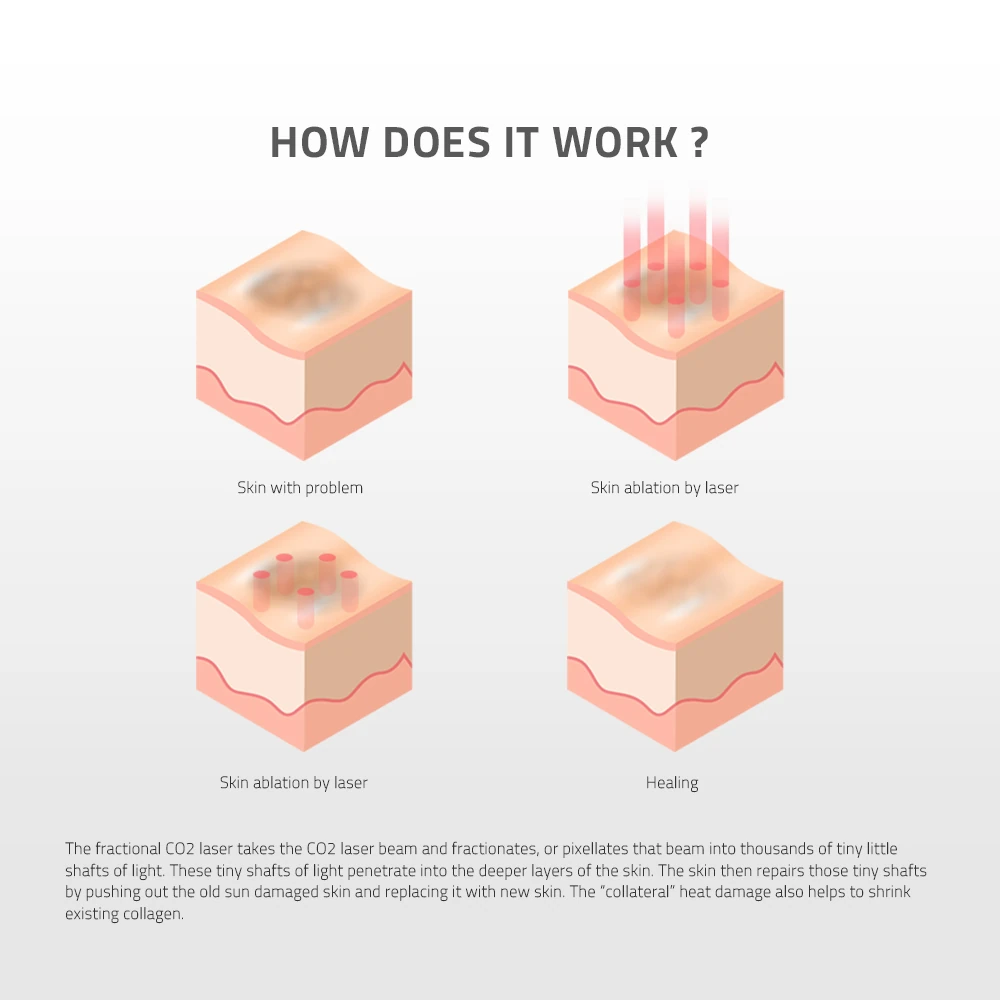

In fractional mode, the laser creates a controlled array of microscopic treatment zones (MTZs), leaving intact tissue bridges between ablated columns to accelerate healing and collagen remodeling.

UltraPulse and SuperPulse technologies deliver high peak power in ultrashort durations, optimizing the ratio of ablation to coagulation and further reducing unintended thermal injury.

The German-engineered optical arm ensures minimal energy loss and consistent beam profile transmission, supporting predictable and reproducible treatment outcomes across all application modes.

$70w/100w co2 fractional laser machine$

Clinical Support

CO2 fractional and ablative laser systems are well-established in dermatology, plastic surgery, and gynecology, with extensive peer-reviewed literature validating their efficacy and safety profiles.

Dermatological & Aesthetic Outcomes

Clinical studies demonstrate significant improvements in skin texture, rhytide reduction, scar remodeling, and tissue tightening, supported by histological evidence of neocollagenesis, elastogenesis, and epidermal regeneration.

Gynecological Application Evidence

Fractional CO2 laser treatment has been shown in clinical trials to improve symptoms of vaginal atrophy, mild stress urinary incontinence, and vulvovaginal laxity, with objective outcomes reflecting enhanced tissue hydration, elasticity, and patient-reported satisfaction.

Safety & Tolerability

The system’s integrated cooling, real-time monitoring, and pulsed emission formats contribute to reduced procedural discomfort, shorter downtime, and excellent patient compliance.

Each device is accompanied by detailed clinical protocols, operational training modules, and evidence-based application guidelines to support optimal clinical integration and outcomes.
