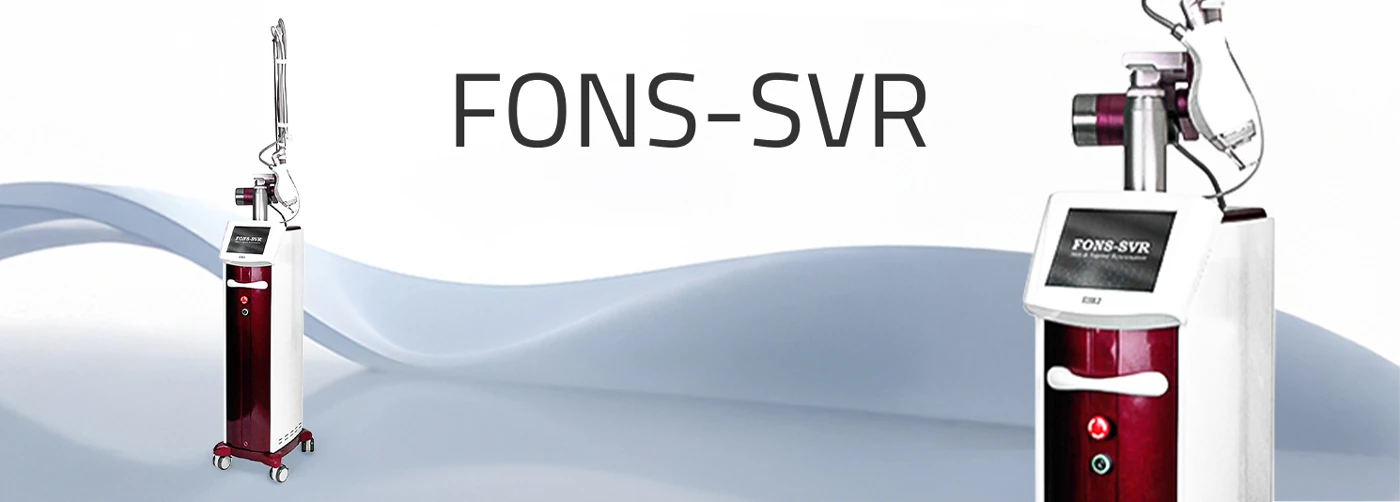

FONS-SVR 10600nm CO2 FRACTIONAL LASER MACHINE
Power Output: 1–30W (Continuous)
Pulse Energy: 1–300 mJ
Pulse Duration: 0.1–10 ms
Output Modes: Continuous / Super Pulse / Ultra Pulse
Treatment Modes: Surgical / Fractional / Vaginal Rejuvenation
Scan Area (FL): X 3–20 mm, Y 3–20 mm
Scan Area (LVR): 8×8 mm / 9×9 mm / 10×10 mm
Scan Shapes: Square, Circle
Scan Graphics: Sequence, Spray, Random
Spot Size (FL): 0.3–0.4 mm
LVR Handpiece – 360° Rotational Vaginal Treatment
Non-invasive laser rotates 360° inside the vaginal canal, stimulating collagen and elastin production throughout the entire circumference for uniform tissue remodeling.
FL Handpiece – Micro-Fractional Precision
Ultra-fine beams (0.3–0.4 mm spot size) deliver safe fractional energy to target tissues with minimal pain and rapid healing—ideal for delicate facial areas.

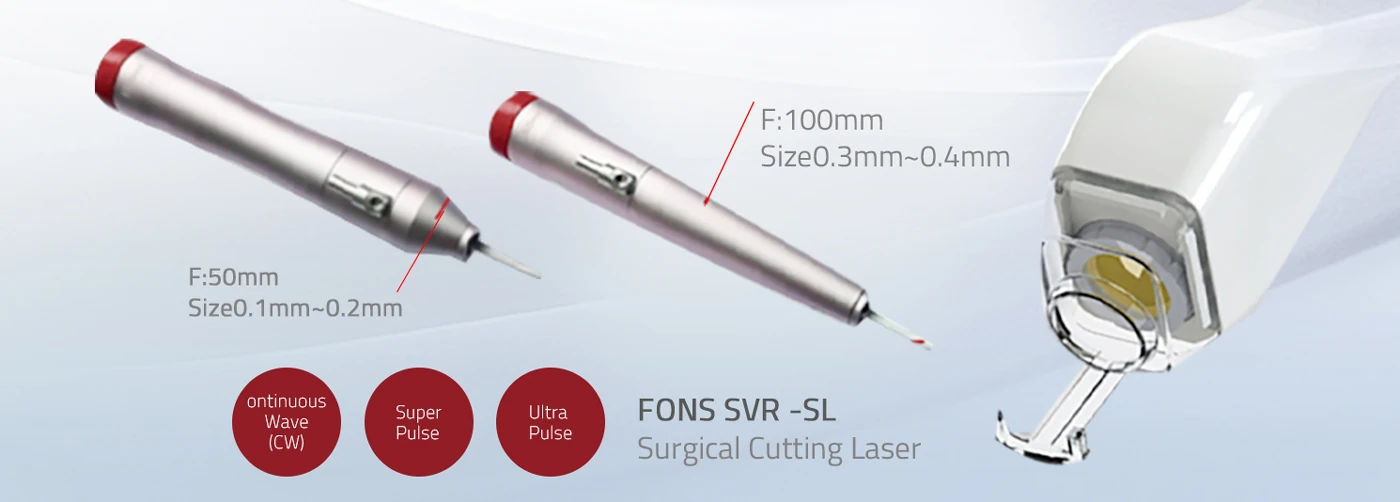

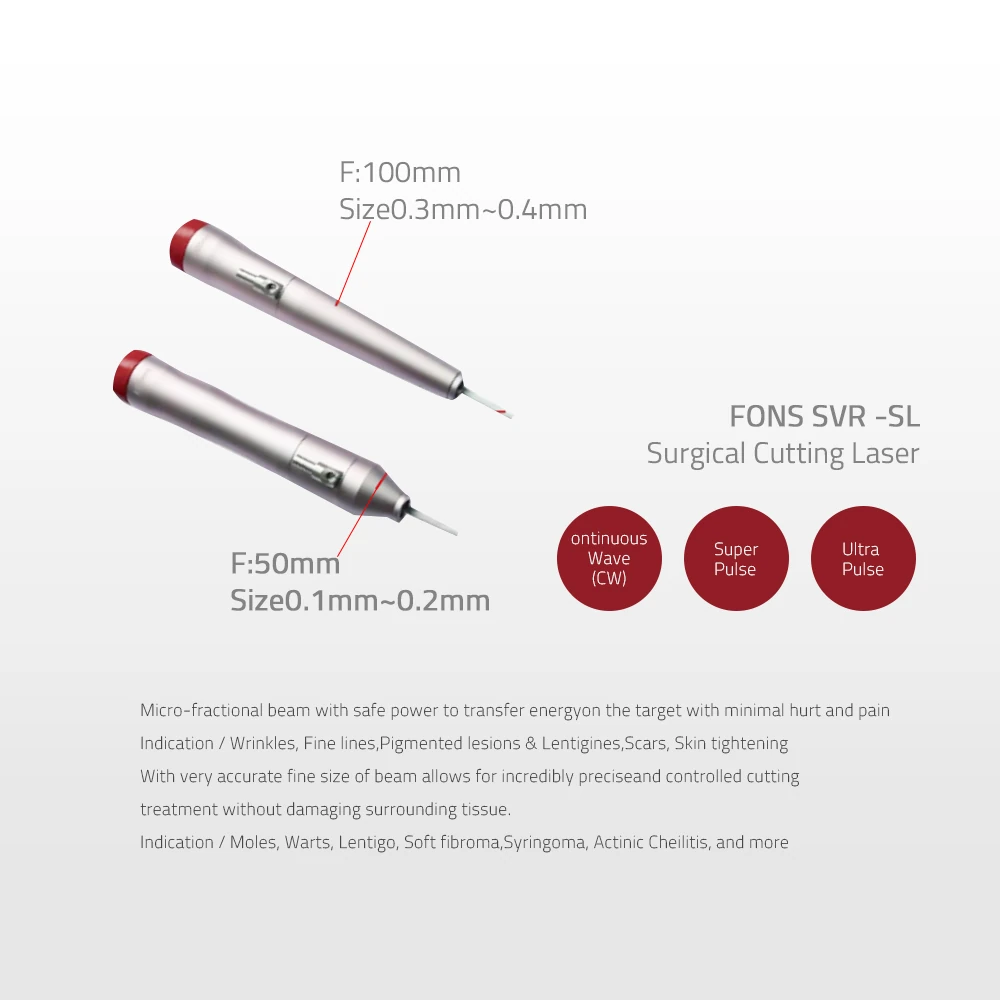

SL Handpiece – Surgical Cutting Precision
Extremely fine, accurate beam enables incredibly precise cutting without damaging surrounding tissue—perfect for mole removal, wart excision, and lesion treatment.
Clinically Proven Recovery Profile
Micro thermal treatment zones (MTZs) show progressive healing: immediate post-treatment change → 2-day recovery → 14-day complete remodeling with visible clinical improvement.
Overview
With adjustable pulse energy (1–300 mJ), pulse duration (0.1–10 ms), and multiple output modes (Continuous, Super Pulse, Ultra Pulse), clinicians can fine-tune parameters for each indication. The FL handpiece features micro-fractional beams (0.3–0.4 mm spot size) for minimally invasive resurfacing, while the LVR handpiece enables 360° rotational treatment for intimate health applications. Full ODM/OEM customization enables complete brand integration.
Applications
SL Handpiece – Surgical Cutting
FL Handpiece – Fractional Resurfacing
LVR Handpiece – Vaginal Rejuvenation
Working Principle
In fractional mode, the scanner creates microscopic ablation zones (MTZs) with adjustable depth and density, preserving intact tissue bridges for accelerated healing and collagen remodeling.

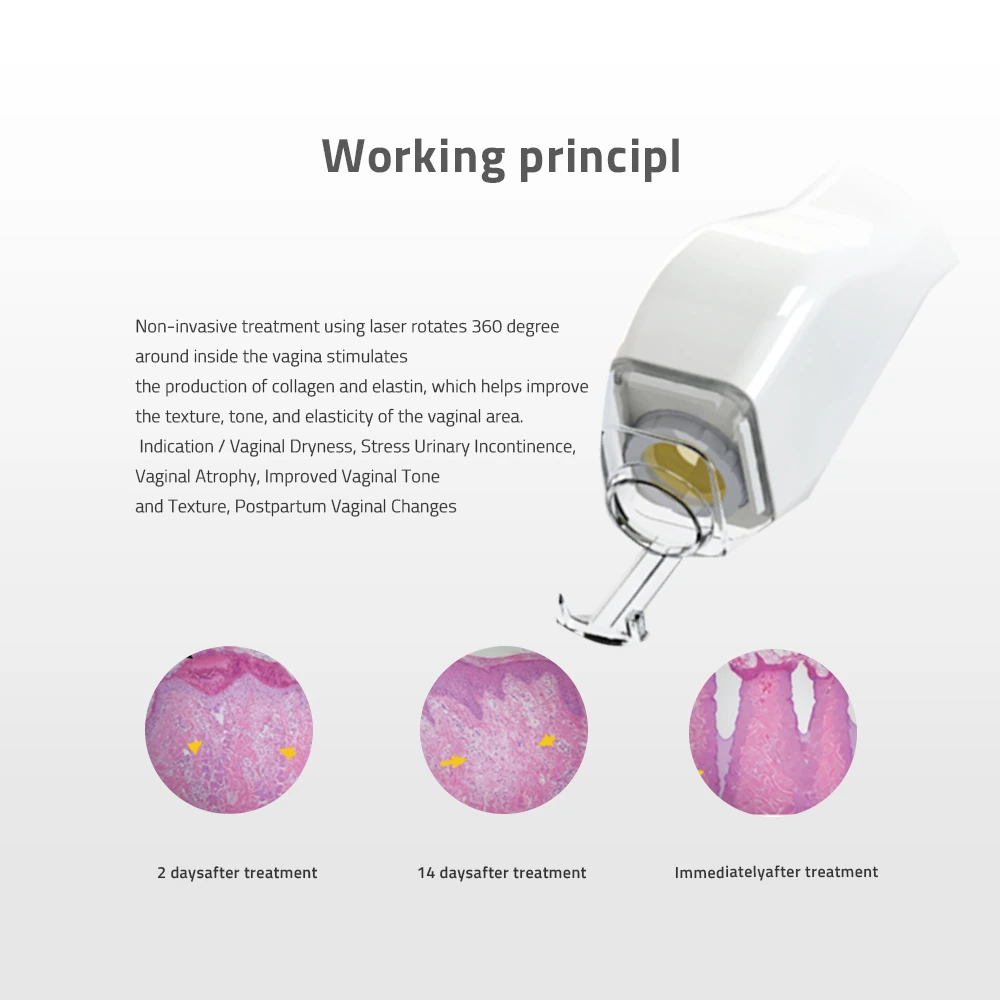

For vaginal rejuvenation, the 360° rotating handpiece delivers fractional energy to the entire vaginal circumference, stimulating neocollagenesis and elastogenesis while preserving mucosal integrity.
Surgical mode provides focused continuous or pulsed energy for precise cutting and vaporization with excellent hemostasis.
