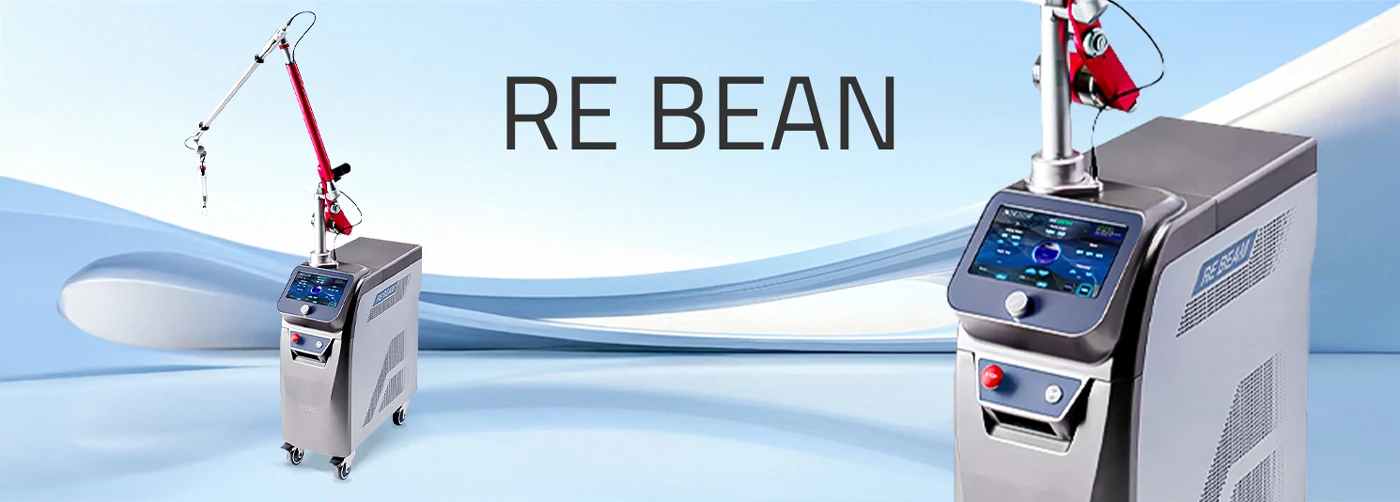

RE BEAN Q-SWITCHED ND:YAG LASER
Oipc Cooling Q-Switched Nd:YAG Laser Machine TOP HAT PM Beam Mode
Beam Mode: Top Hat PM Mode (TEM00)
Wavelengths: 1064 nm / 532 nm
Peak Power: 300 MEGA WATT
Energy (1064nm): SPT: 1500 mJ / GPT: 2000 mJ / HPT: 3000 mJ
Energy (532nm): SPT: 500 mJ / GPT: 500 mJ
Spot Size: 2–10 mm (adjustable)
Repetition Rate: SPT 1–15 Hz / GPT 2–30 Hz / HPT 1–15 Hz

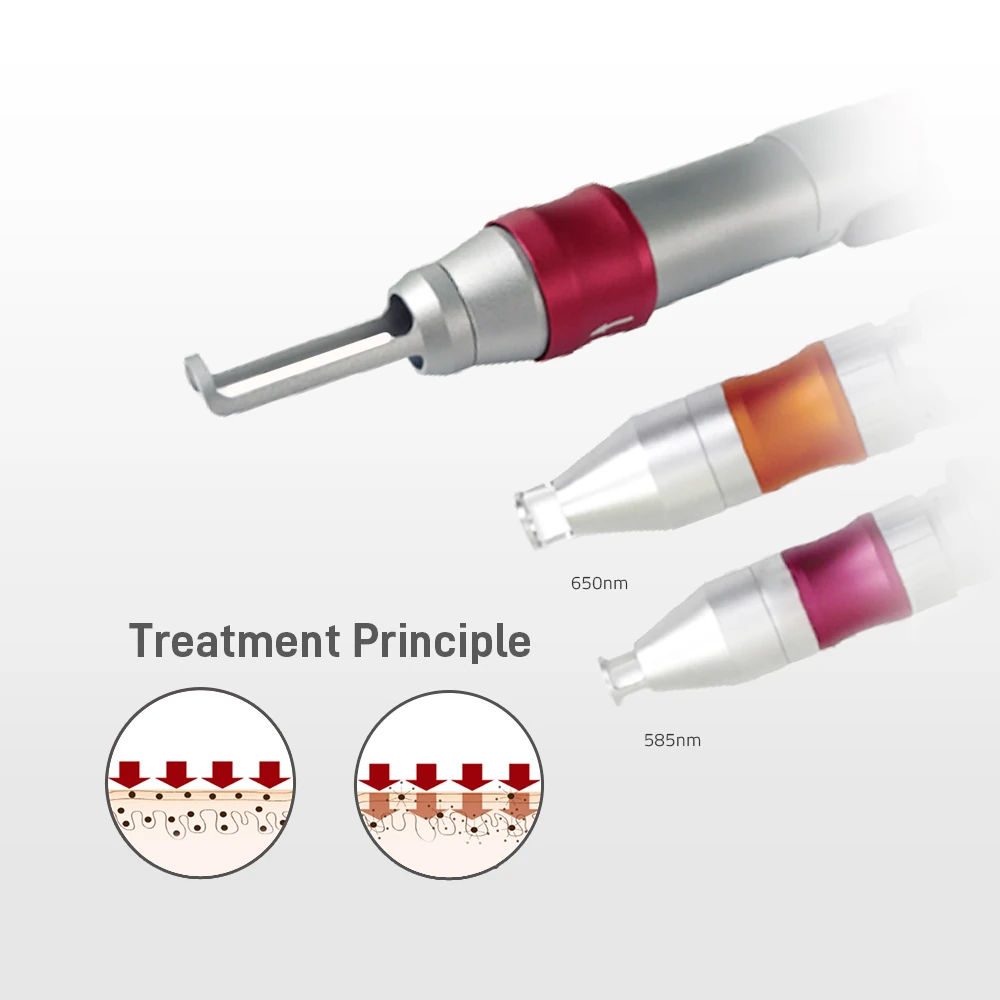

Handpieces: Zoom Handpiece / MLA Handpiece
300 MEGA WATT Peak Power
Exceptional peak power generates powerful photoacoustic effects for efficient fragmentation of even the most resistant tattoo inks and dermal pigments.
Triple Treatment Modes (SPT/GPT/HPT)
SPT Mode: Single high-energy pulse for aggressive pigment destruction
GPT Mode: 6-pulse safe laser toning with minimal irritation
HPT Mode: Thermal regeneration for skin cell stimulation and elasticity improvement
Top Hat Beam Mode (TEM00)
3.Uniform energy distribution across entire spot eliminates hot spots and cold zones, ensuring consistent treatment effect across the entire irradiated area.
Smart Auto Temperature Cooling
Integrated heating and cooling with automatic temperature performance ensures optimal operating conditions and extended component life.
Overview

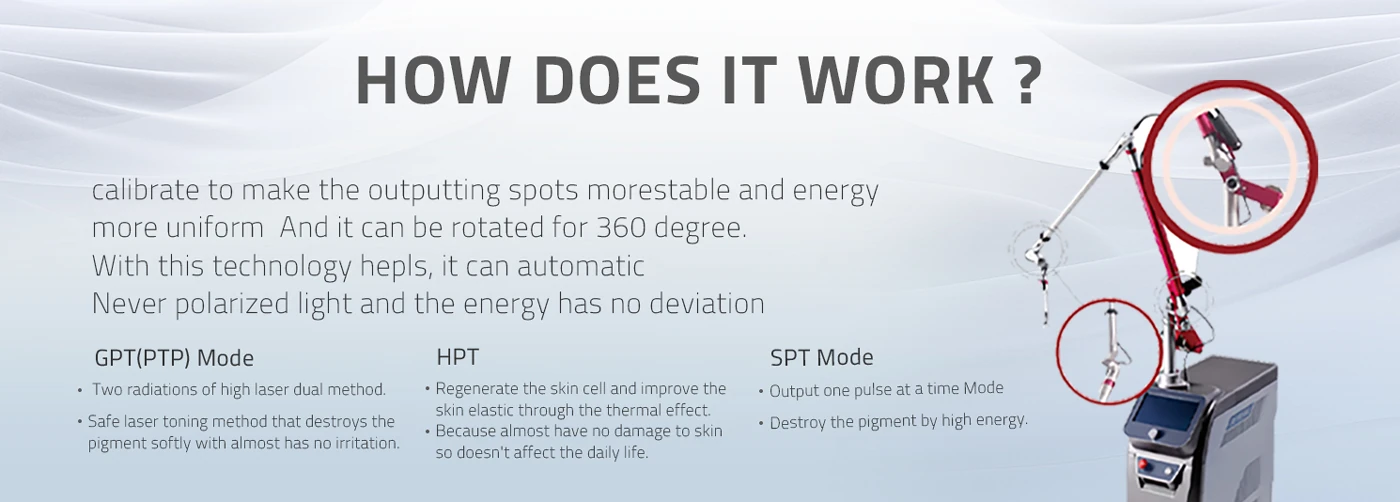

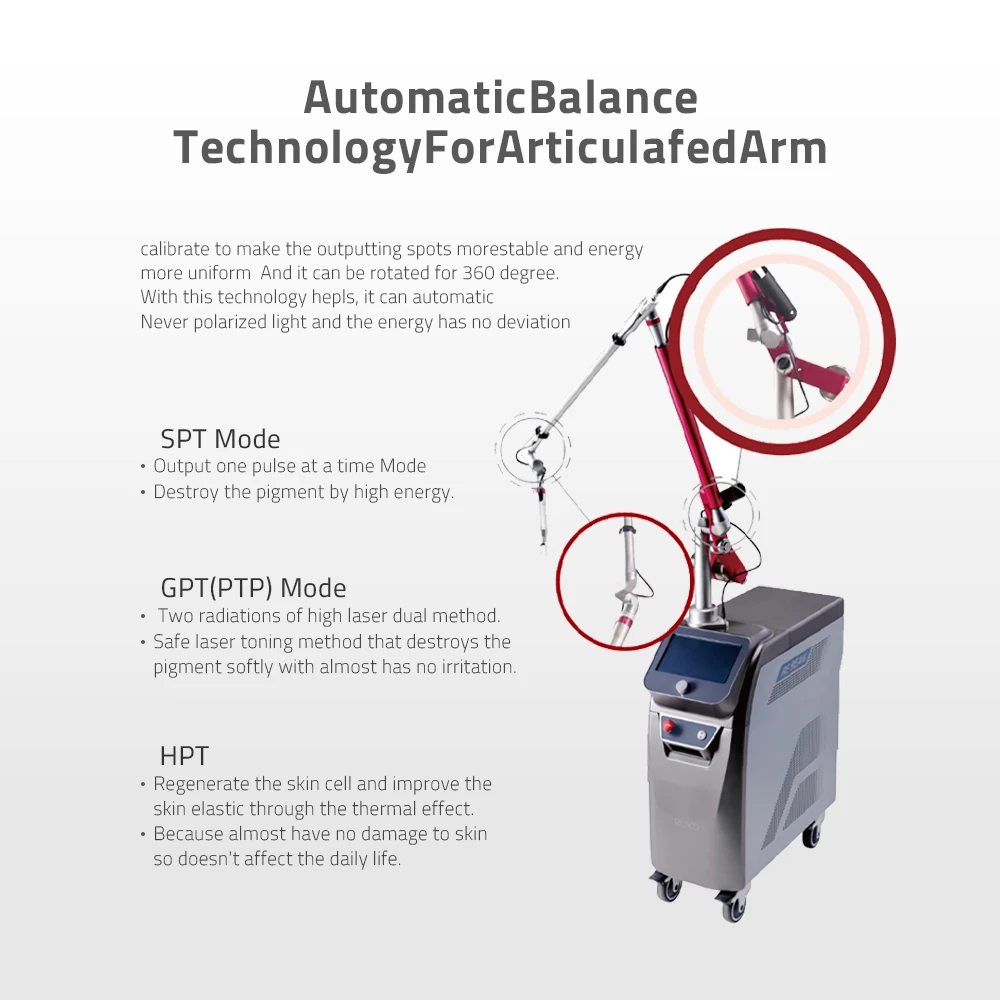

Engineered with an articulated arm featuring automatic balance technology, this system maintains stable, uniform energy delivery throughout 360° of motion—eliminating polarization and energy deviation. Dual handpieces (Zoom and MLA) expand clinical versatility, while Top Hat beam mode ensures consistent energy distribution across the entire treatment area. Full ODM/OEM customization enables complete brand integration.
Applications

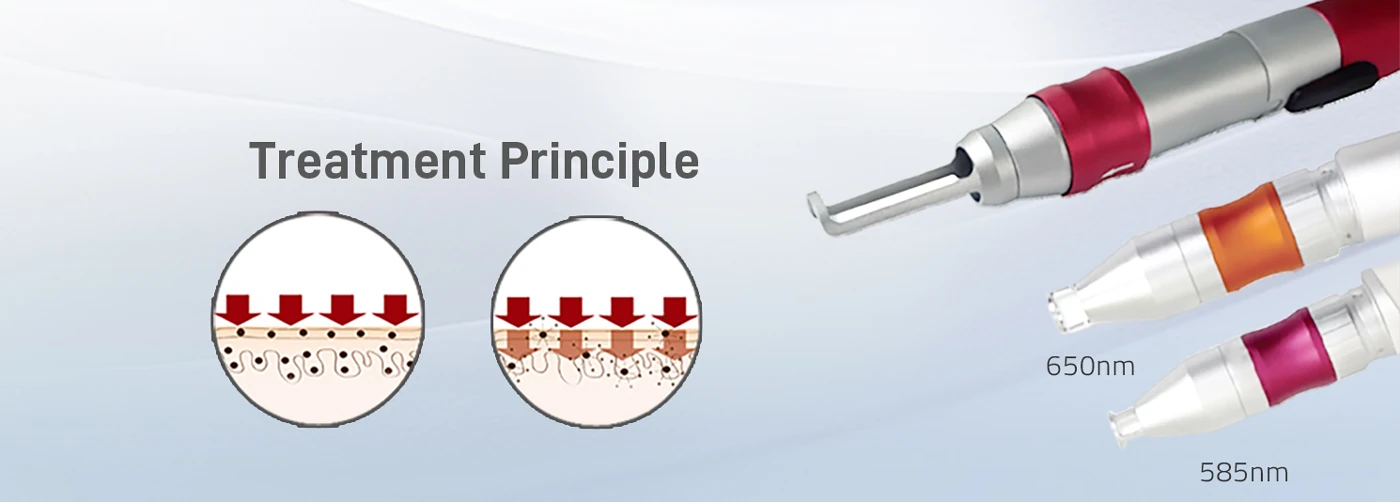

Working Principle
SPT Mode: Delivers single, high-energy pulses that generate powerful photoacoustic waves, mechanically shattering pigment particles into microscopic fragments for lymphatic clearance.
GPT Mode: Uses multiple lower-energy pulses (6-pulse technology) to gently heat melanin granules in melasma and freckles, gradually lightening pigmentation without triggering inflammation.
HPT Mode: Applies thermal energy to stimulate fibroblast activity and neocollagenesis, improving skin elasticity and texture through controlled dermal heating.
